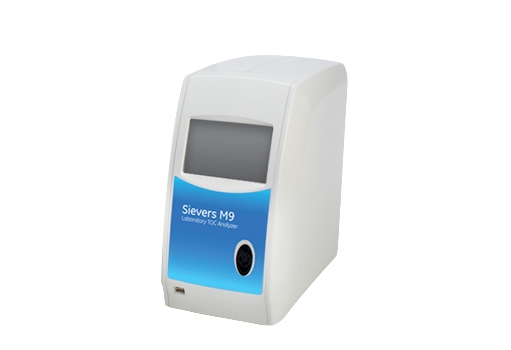

Sievers M9 Laboratory TOC Analyzer

Maximize productivity without sacrificing accuracy or ease-of-use

The M9 Lab offers time-tested dependability and accuracy with Sievers TOC technology. Beyond analytical performance and compliance, the M9 Lab has automated features to save you time, an option for simultaneous Stage 1 conductivity testing, and four-second analysis time in Turbo mode. The M9 TOC Analyzers and software comply with 21 CFR Part 11 and meet, or exceed, recent data integrity guidelines. For the pharmaceutical industry, Sievers Validation Support Packages (VSPs) help you navigate the M9 validation process and enable a more efficient instrument implementation. The new Sievers VSP for software is written specifically to address Data Integrity and 21 CFR Part 11 by validating Sievers DataPro2 software.

Download Brochure (PDF)

M9 Lab Features & Benefits

  • Two-minute sample analysis time
  • Measures discrete grab samples or can be connected to the Sievers Autosampler for high-volume sample analysis
  • Automated operations, such as calibration, verification, and data analysis
  • Autoreagent feature automatically establishes optimal flow rates for each sample
  • Well suited for a variety of sample matrices and concentrations
  • Minimal preventive maintenance (typically just a few hours per year)
  • 12-month calibration stability
  • Optional Stage 1 conductivity capability for simultaneous testing of TOC and conductivity
  • Optional Turbo mode for four-second analysis

M9 Lab Specifications

Operating Specifications*
Range 0.03 ppb to 50 ppm
Precision < 1% RSD
Accuracy ± 2% or ± 0.5 ppb, whichever is greater
Display Readout 3 significant digits
Sample Type Autosampler or discrete grab sample
Calibration Typically stable for 12 months
Analysis Time 2 minutes (4 seconds with the optional Turbo mode)
Sample Temperature 5–95 °C (41–203 °F)
Ambient Temperature 5–40 °C (41–104 °F)
Instrument Sample
Flow Rate		 0.5 mL/min

Analyzer Specifications
Outputs USB device port (1); USB host ports (3); Modbus TCP/IP
Display 7" WVGA 800X480 pixel, Color LCD with touch-screen
Power 100 - 240 V~, 50 -60 Hz, 100 VA
Fuses Replace with same type and size fuse: T 1.6 A 250 VAC Fuse (Slow Blow), size 5 X 20 mm appliance inlet
Dimensions H: 42.2 cm (16.6 in); W: 24.6 cm (9.7 in); D: 40.0 cm (15.8 in)
Weight 9.4 kg (20.6 lb)
Safety Certifications ETL, CE (see Declaration of Conformity)

Sample Conductivity (Optional)
Raw Conductivity Range 0.01 to 2,000 μS/cm
Conductivity Accuracy ±0.005 μS/cm or ±1%.whichever is greater
Precision <0.25% RSD

Environment
Maximum Relative Humidity 0 - 95%, non-condensing
Maximum Altitude 3,000 m (9.800 ft)
Pollution Degree 2
The UV lamp inside this product contains mercury and must be recycled or disposed of in accordance with local, state, and federal laws.
* Stated analytical performance is achievable under controlled laboratory conditions that minimize operator and standards errors.

M9 Lab Turbo Specifications

Operating Specifications*
Range 0.20 ppb to 10 ppm
Precision 2% RSD
Accuracy ±10% or ±10ppb whichever is greater
Display Readout 3 significant digits
Sample Type Grab and Autosampler
Calibration Typically stable for 12 months
Analysis Time 4 seconds
Response Time 3.25 Minutes
Sample Temperature 5–95 °C (41–203 °F)
Ambient Temperature 10–40 °C (50–104 °F)
Sample Pressure** Up to 100 psi
Instrument Sample
Flow Rate		 1.1. ml/min

Analyzer Specifications
Outputs USB device port (1); USB host ports (3); Ethernet
Display 7" WVGA 800X480 pixel, Color LCD with touch-screen
Power 100 - 240 V~, 50 -60 Hz, 100 VA
Fuses Replace with same type and size fuse: T 1.6 A 250 VAC Fuse (Slow Blow), size 5 X 20 mm appliance inlet
Dimensions H: 42.2 cm (16.6 in); W: 24.6 cm (9.7 in); D: 40.0 cm (15.8 in)
Weight 9.4 kg (20.6 lb)
Safety Certifications ETL, CE

Consumables
UV Lamp 6 months
Acid Reagent As needed, typically 6 months
Oxidizer Reagent As needed, typically 3-month stability; available in 150- or 300-mL cartridge

*Stated analytical performance is achievable under controlled laboratory conditions that minimize operator and standards errors.
**If the sample temperature and pressure are above 60 °C and 100 psi, the M9 Analyzer model with the stainless steel iOS is required.

M9 Lab Options and Accessories

  • Sievers Autosampler: 63 or 120 sample-position capacity

  • DataPro2 Software: Custom sample protocols; automated calibration and validation protocols

  • DataGuard Software: Full compliance support for 21 CFR Part 11 and Annex 11

  • Inorganic Carbon Remover (ICR): Improves TOC accuracy for samples with high inorganic carbon levels

  • Sample Conductivity: Measure and report sample conductivity

  • Turbo Mode: Provides four-second analysis time
